1. The Relationship Explained

Ever wondered how those tiny components inside your electronic gadgets manage to store energy? Well, that's where capacitors come in! They're like miniature rechargeable batteries, but instead of chemical reactions, they store energy in an electric field. Now, the big question: does a higher capacitance automatically mean a lower voltage? Let's dive into the fascinating world of capacitors and uncover the answer.

Think of capacitance as the size of a bucket. A bigger bucket (higher capacitance) can hold more water (charge). Voltage, on the other hand, is like the water pressure. So, can we just say a bigger bucket leads to less pressure? Not necessarily! It depends on how much water we actually pour in.

The core relationship is expressed by a simple yet powerful equation: Q = CV, where Q is the charge stored, C is the capacitance, and V is the voltage. This formula tells us that the amount of charge stored in a capacitor is directly proportional to both its capacitance and the voltage across it. So, if you increase the capacitance and keep the charge the same, then, yes, the voltage will decrease. But if you increase the capacitance and also pump in more charge, the voltage could stay the same or even increase!

It's all about the interplay of these three elements. Just saying higher capacitance equals lower voltage is a bit of an oversimplification. We need the full picture to understand what's really going on. It's like saying a bigger gas tank means you'll drive slower — not necessarily, right? It depends on how hard you press the gas pedal!

Relationship Between Current And Voltage In Capacitors YouTube

Delving Deeper

2. Charge, Capacitance and Voltage

Okay, let's solidify this with an analogy. Imagine you have two water tanks. One is a small tank (low capacitance), and the other is a huge reservoir (high capacitance). Now, you pour the same amount of water into both. Which one will have a higher water level (voltage)? The small tank, of course!

This highlights a crucial point: for a fixed amount of charge, a higher capacitance will indeed result in a lower voltage. This is because the charge is spread out over a larger "area" within the capacitor. Its like spreading butter thinly on a larger piece of bread — the butter will be less concentrated (lower voltage) on the bigger slice (higher capacitance).

However, the keyword here is "fixed amount of charge." In many real-world scenarios, the charge isn't fixed. You might be charging the capacitor from a voltage source, which constantly replenishes the charge. In those cases, simply increasing the capacitance doesn't guarantee a lower voltage. The voltage source will keep trying to maintain its voltage level, pumping in more charge to the bigger capacitor.

Think of your phone charger. It provides a constant voltage. If you connect a capacitor with a higher capacitance to it, the charger will happily pump more charge into it until the capacitor reaches the chargers voltage. So, increasing capacitance there wont lower the voltage, it will just allow more energy to be stored at that voltage!

Capacitance Vs. Gate Voltage Of A TSV Capacitor And Its Distinct

Real-World Examples

3. Practical Applications

So, where do we see this "higher capacitance = lower voltage (sometimes)" principle in action? Well, in power supplies, larger capacitors are used to smooth out voltage fluctuations. They act as reservoirs of charge, providing extra power when the demand suddenly increases. By having a larger capacitance, they can supply a decent amount of charge with minimal voltage drop.

Another example is in audio amplifiers. Capacitors are used to block DC signals while allowing AC signals to pass. By choosing the right capacitance value, engineers can ensure that the audio signal is properly filtered, and that the amplifier operates optimally. A higher capacitance may be used to allow lower frequencies to pass through without significant attenuation, potentially affecting the bass response.

Even in something as simple as a camera flash, capacitors play a vital role. A capacitor is charged to a high voltage, and then quickly discharged through the flashbulb to produce a burst of light. The capacitance determines the amount of energy stored, and hence the intensity and duration of the flash. A larger capacitor means a brighter and/or longer flash, but it takes longer to charge!

It's all about understanding the circuit and what you want the capacitor to do. Are you trying to smooth out voltage fluctuations? Store a large amount of energy? Filter out unwanted frequencies? The answer dictates the optimal capacitance value, and its impact on the voltage.

Lab 4 Capacitance And Inductance Youtube

The Misconceptions and Gotchas

4. Clearing Up Confusion

One common misconception is that a higher capacitance automatically equals a "better" capacitor. This isn't necessarily true. The ideal capacitance depends entirely on the application. Using a capacitor with a ridiculously high capacitance when a smaller one would suffice can actually be detrimental. It might introduce unwanted side effects, like increased size, cost, or even instability in the circuit.

Another thing to keep in mind is the voltage rating of the capacitor. Every capacitor has a maximum voltage it can withstand before it breaks down. If you exceed this voltage, the capacitor can be permanently damaged, and potentially even explode (not a fun experience!). So, always make sure the capacitor you're using has a voltage rating that's high enough for your application.

Also, remember that capacitance isn't the only factor that matters. Other parameters, like ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance), can also significantly impact the capacitor's performance, especially at high frequencies. Ignoring these factors can lead to unexpected behavior in your circuits.

In essence, choosing the right capacitor is a balancing act. You need to consider capacitance, voltage rating, ESR, ESL, and the specific requirements of your application. Don't just blindly assume that "bigger is always better." A well-chosen capacitor, carefully matched to the circuit's needs, is what truly matters.

Load Threshold

Final Thoughts

5. Bringing It All Together

So, "Does higher capacitance mean lower voltage?" The answer, as you probably guessed, is "It depends!" It's a relationship that's influenced by a variety of factors, most notably the amount of charge involved. Remember Q = CV?

Ultimately, understanding the relationship between capacitance and voltage requires a holistic understanding of the circuit youre working with. Knowing where the charge is coming from, where it's going, and what role the capacitor plays is crucial for making informed design decisions. It is not a simple equation.

Don't be afraid to experiment! Build circuits, measure voltages, and see for yourself how different capacitance values affect the behavior of your circuits. Hands-on experience is the best way to truly grasp these concepts. After all, electronics is a practical field, and theory is only useful when it's applied to real-world problems.

So, go forth and explore the world of capacitors! Just remember to be safe, double-check your connections, and don't exceed the voltage ratings of your components. Happy tinkering!

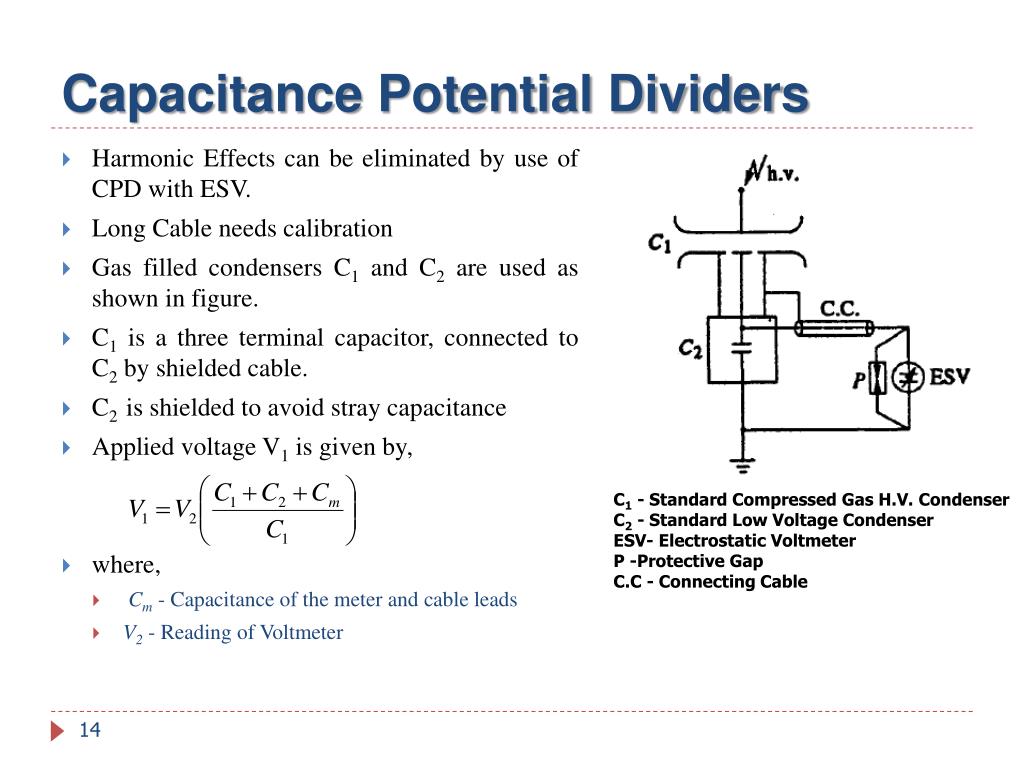

PPT Mesurement Of High Voltages & Currents PowerPoint

FAQ

6. Your Questions, Answered!

Here are some frequently asked questions to further clarify the connection between capacitance and voltage:

Q: If I replace a capacitor with one that has higher capacitance but the same voltage rating, will my circuit perform better?

A: Not necessarily! It depends on the application. In some cases, it might improve performance (e.g., smoothing out voltage fluctuations). In other cases, it might have no noticeable effect, or even introduce unwanted side effects (e.g., slower response time). It's always best to consult the circuit's design specifications or perform tests to determine the optimal capacitance value.

Q: Can I use a capacitor with a lower voltage rating than what's specified in the circuit?

A: Absolutely not! Using a capacitor with an insufficient voltage rating is a recipe for disaster. The capacitor could fail catastrophically, potentially damaging other components or even causing a fire. Always use a capacitor with a voltage rating that's equal to or greater than the maximum voltage in the circuit.

Q: Does the type of capacitor (e.g., ceramic, electrolytic, film) affect the relationship between capacitance and voltage?

A: While the fundamental relationship Q = CV remains the same for all types of capacitors, different capacitor types have different characteristics that can indirectly influence the voltage. For example, electrolytic capacitors typically have higher capacitance values but also higher ESR, which can cause voltage drops at high frequencies. The choice of capacitor type should be based on the specific requirements of the application.
